Metallographic analysis of metallic materials

Sources: | Release date: 2019-08-02 | Views:1053
Overview:1. Cut the sample, first determine the sample, select the cutting machine with the correct cutting surface diameter for cutting. 2. Grinding and polishing samples, according to different sample size and shape, you can choose manual grinding or automat…

  1. Cut the sample, first determine the sample, select the cutting machine with the correct cutting surface diameter for cutting


  2. Grinding and polishing samples, according to different sample size and shape, you can choose manual grinding or automatic grinding and polishing, first sanding, sanding samples with different sand and sand, grinding to the appropriate extent (according to experience), then polishing, choose the right polishing Cloth, with a suitable diamond spray polishing solution (thickness based on experience) for polishing, polishing to a certain extent (according to experience) and then proceeding to the next step


  3. Properly suitable corrosive liquid (different materials, different choices of corrosive liquids, different ratios, according to experience)

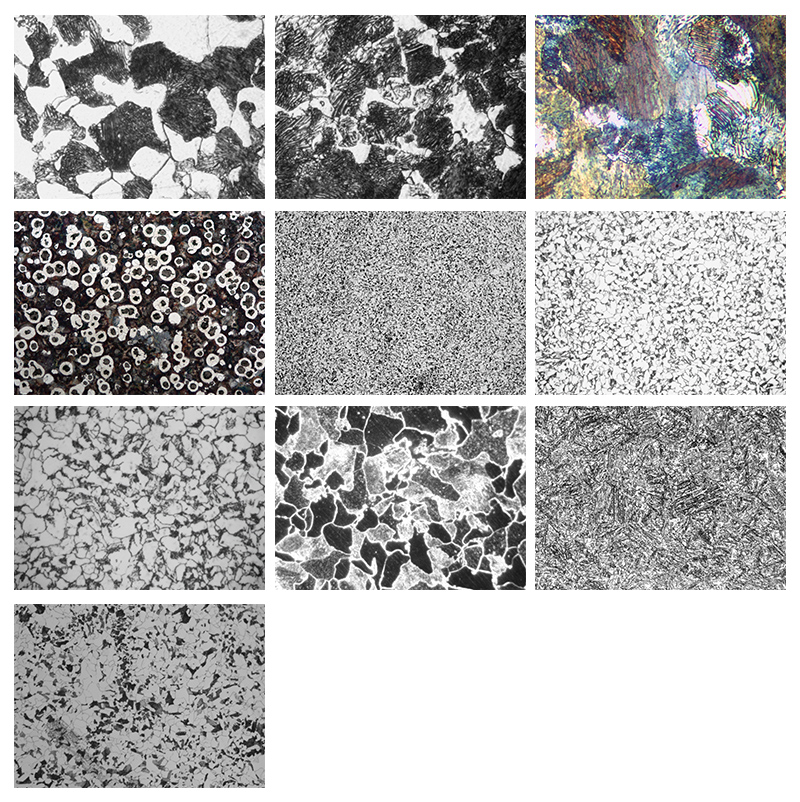

  4. Select the appropriate metallographic microscope to determine the different magnifications, adjust the metallographic microscope correctly, and import the image observed by the microscope into the computer to save the image.


  5. Photograph preservation, with metallographic analysis software, metallographic analysis, export metallographic analysis report

一、仪器用途

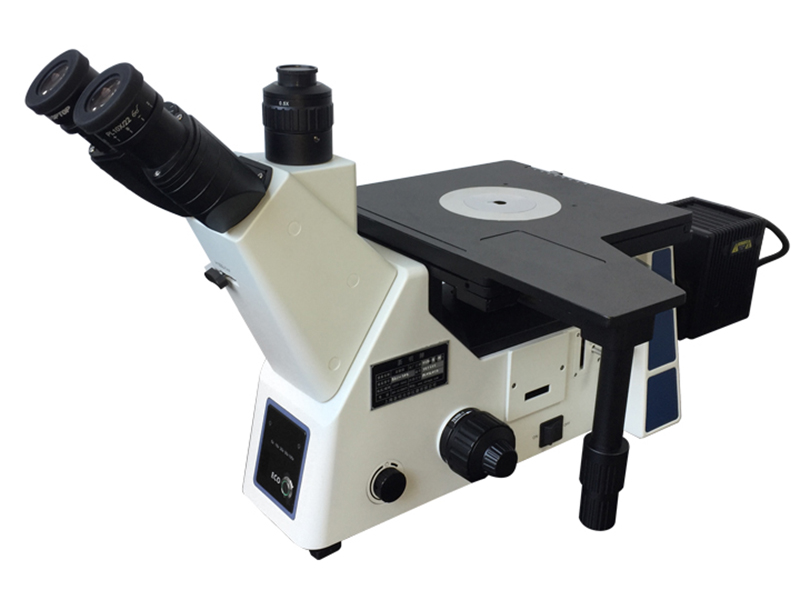

  CDM-920符合人机工程学要求的理想设计,使操作更方便舒适,空间更广阔。适用于金相组织及表面形态的显微观察,是金属学、矿物学、精密工程学研究的理想仪器。也适合电子、冶金、化工和仪器仪表行业观察透明、半透明、不透明的物质,如金属、陶瓷、集成块、印刷电路板、液晶板、薄膜、纤维、度涂层以及其他非金属材料,也适合医药、农林、公安、学校、科研部门作观察分析用。


二、系统简介
  CDM-920系列金相显微镜具有高性能光学系统,简便的操作,创新的技术,完善的功能,良好的稳定性,能满足您现在及将来的各种应用需求。本产品设有两个摄像器接口,可同时连接两台计算机(数码相机),共享图像。能实现灵活升级,比如可以轻松实现DIC观察。


三、技术参数


光学系统

无限远光学矫正系统

超大视野目镜

WF10X/22mm

WF10X/20mm,十字分化目镜

无穷远长工作

距离平场消色

差物镜

∞PL L5X/0.12           工作距离:10mm

∞PL L10X/0.25          工作距离:10mm

∞PL L20X/0.40          工作距离:5mm

∞PL L50X/0.55          工作距离:2.5mm

∞PL L100X/0.8         工作距离2.1mm(选购)

观察头

铰链式双目观察头,30°倾斜,瞳距48-75mm

柯勒照明

12V/50W卤素灯,中心、亮度连续可调

起偏镜、检偏镜

调焦机构

粗微动同轴调焦,带锁紧装置,微动格值:2μm,移动范围向上1mm,向下7mm

转换器

内向式五孔转换器 Backward quintuple nosepiece

载物台

平台尺寸:240(W)×250(L),移动范围50×50mm,双向线轨传动,右手低手位控制

小平台:Ф16,,40,水滴形

物镜测微尺

灯室调焦物镜


四、 优点
  本机具有明场、暗场、偏光功能,客户如有需要还可以升级添加DIC微分干涉功能,光学系统优良,物镜工作距离大,方便操作,物镜采用半复消色差无穷远物镜,图像更清晰,属金相显微镜中的精品机器。


  配节能系统,开机长时间不试用,光源自动变暗,转换物镜倍数,显微镜有变倍数字显示,方便知道倍数。


  观察系统:铰链式双目观察镜筒,30°倾斜,操作时不需要长时间低头或平视观察,使操作者的肩部得到有效释放。平场广角目镜视场数可达直径22mm,使目镜视场更为广阔、舒适,配有橡胶眼罩。

  机械载物台:机械式移动载物平台,内置可旋转圆形载物台板,板中设置的异型观察窗口适合于不同规格试样的显微观察,在进行偏光观察时可旋转圆形载物台板,以满足偏光镜检的要求。

  照明系统:采用柯拉照明方式,孔径光栏与市场光栏可通过拨盘进行孔径大小调整,调整顺畅舒适。选配的起偏镜可以360°调整偏振角,以观察不同偏振状态下的显微图像。可选配DIC微分干涉片,快速升级产品系统功能。

  暗场照明:配置高品质的明暗视场物镜与暗视场照明装置,对照明系统的有害光线进行有效消除,使暗视场的成像效果得到了明显提高。
摄影摄像观察:后置式摄影摄像接口设计,使摄影摄像附件不再干扰目视观察。采用100%通光,适用于低照度的显微摄影摄像,标配1200万像素1/1.7”大版面摄像器,图像更加清晰逼真。

 五、系统组成
电脑型(CDM-920C):1、显微镜主机 2、适配镜  3、摄像器(1200万像素高清)   4、计算机(选购)
