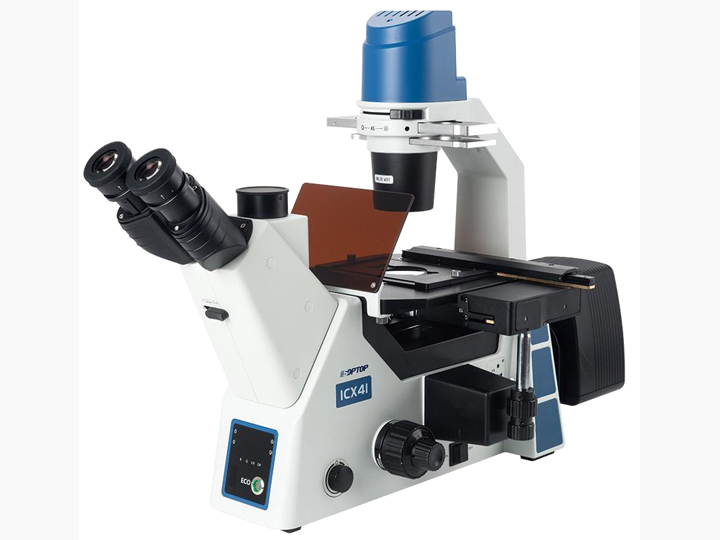

    ICX41

    Description:Parameter configuration: Optical systemInfinity chromatic aberration correction systemObservation headTrinocular observation cylinder, 45 tilt, hinge group can rotate 360, fixed eyepiece tube, distance adjustment range 50-75mm, two-speed split ratio:…

    Parameter configuration:

    Optical system

    Infinity chromatic aberration correction system

    Observation head

    Trinocular observation cylinder, 45° tilt, hinge group can rotate 360°, fixed eyepiece tube, distance adjustment range 50-75mm, two-speed split ratio: binocular: trinocular = 100:0 or 0:100

    Trinocular viewing tube, 45° tilt, hinge set 360° rotation, fixed eyepiece tube, distance adjustment range 50-75mm, fixed 5:5 split light

    Eyepiece

    High eye point large field of view flat field eyepiece PL10X/22mm, adjustable visibility, with micrometer

    High eye point large field of view flat field eyepiece PL15X/16mm, adjustable visibility

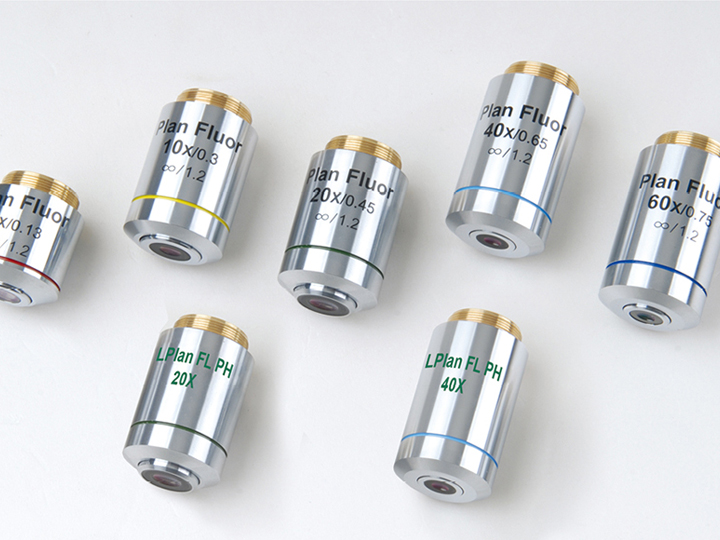

    Objective mirror

    Extra long working distance infinity flat field achromatic objective lens(4X、10X、20X、40X、60X)

    Extra long working distance flat field positive phase contrast objective(4X、10X、20X、40X)

    Extra long working distance infinity flat field fluorescent objective(4X、10X、20X、40X、60X)

    Ultra-long working distance infinity semi-apochromatic flat field positive phase contrast fluorescent objective(20X、40X)

    Objective lens converter

    Internal positioning five-hole converter

    Internal positioning four-hole converter

    Shelf

    Transmissive bio-frame, with low-handed coarse and fine-tuning coaxial, coarse adjustment stroke of 9mm, focal length of 6.5mm, downward 2.5mm, fine-tuning accuracy of 0.002mm, with elastic adjustment handwheel to prevent slipping, using external wide voltage Transformer, input 100-240V, output 12V5A, body with infrared sensing function, 30 minutes automatic power off, transmission light source, with brightness indicator

    Transflective bio-fluorescence frame, using low-handed coarse and fine adjustment coaxial, coarse adjustment stroke 9mm, focal length 6.5mm, downward 2.5mm, fine adjustment accuracy 0.002mm, with elastic adjustment hand wheel to prevent sliding, four slots LED fluorescent filter set. Adopt external wide voltage transformer, input 100-240V, output 12V5A, body with infrared sensing function, 30 minutes automatic power off, transflective light source, with light source brightness indicator

    Transmission lighting system

    Critical illumination, warm color 5WLED, color temperature 3000K, predetermined center, with variable aperture diaphragm

    Reflective fluorescent lighting system

    Kola Lighting, 5WLED consists of 385nm, 470nm, 560nm three sets of LED light source, respectively equipped with UV1, B1, G1 fluorescence filter set, predetermined center, servo motor control light source automatically switch with the color filter set

    Stage

    215mm×250mm fixed loading platform, mechanical moving ruler (moving range: 120mm×80mm), stage extension plate, slide holder, ¢35 peel culture tray holder, Teraseki holder, waist shape Hole metal stage plate, glass stage plate

    Condenser

    Numerical aperture N.A.=0.3, long working distance WD72mm, detachable

    Other

    Color temperature change / green contrast (Φ45mm), phase contrast board set, marking lens, mobile phone camera interface
