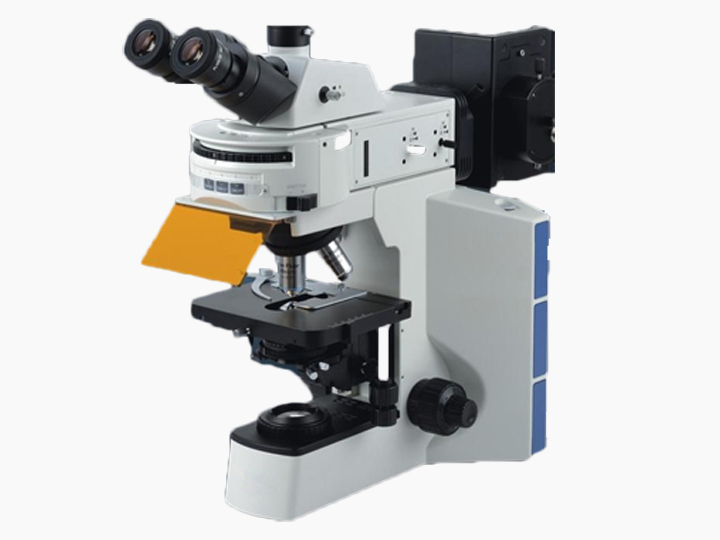

    CX40

    Description:Optical systemInfinity chromatic aberration correction systemObservation tube30 tilt, hinged binocular, 360 rotation, pitch adjustment 54mm-75mm, dioptric adjustment: 5 diopters30 tilt, hinged trinocular, 360 rotation, pitch adjustment 54mm-75mm, diop…

    Optical system

    Infinity chromatic aberration correction system

    Observation tube

    30° tilt, hinged binocular, 360° rotation, pitch adjustment 54mm-75mm, dioptric adjustment: ±5 diopters

    30° tilt, hinged trinocular, 360° rotation, pitch adjustment 54mm-75mm, dioptric adjustment: ±5 diopters, two split ratio: 0:100 or 50:50

    30° tilt, hinged trinocular, 360° rotation, pitch adjustment 54mm-75mm, dioptric adjustment: ±5 diopters, two split ratio: 0:100 or 100:0

    5-35° tilt angle adjustable, positive image, infinity hinged three-eye observation head, fixed observation tube, adjustable distance of 54mm-76mm, single-sided visibility, two-speed split ratio: 100:0 or 0: 100

    30-60° tilt angle adjustable, high-efficiency infinity hinged binocular viewing tube, 360° rotation, pitch adjustment 54mm-75mm, visual adjustment: ±5 diopter

    30° tilt, hinged digital viewing head, 360° rotation, 54mm-75mm pitch adjustment, unilateral diopter adjustment: ±5 diopter

    eyepiece

    High eye point large field of view flat field eyepiece PL10X/22mm, with micrometer

    High eye point large field of view flat field eyepiece PL15X/16mm

    Objective lens

    Infinity plan achromatic objective lens(2X、4X、10X、20X、40X、60X、100X)

    Infinity flat field positive phase contrast objective(10X、20X、40X、100X)

    Infinity flat field semi-apochromatic fluorescent objective(4X、10X、20X、40X、100X)

    converter

    Internal positioning five-hole converter

    Focusing mechanism

    Low hand position coarse and fine adjustment coaxial, coarse adjustment stroke 30mm, fine adjustment accuracy 0.002mm, elastic adjustment device and upper limit device, height adjustment of carrier bracket group

    Stage

    175mm × 145mm right-hand double-layer composite mechanical platform (optional left-hand position adjustment handle), detachable; moving range 76mm × 50mm. Accuracy 0.1mm

    150mm × 162mm double-layer composite mechanical platform, moving range 76mm × 50mm, accuracy 0.1mm; X-axis single-track drive; upper platform ceramic spray paint

    187mm×166mm double-layer composite mechanical platform, moving range 80mm×55mm, precision 0.1mm, bidirectional wire gauge drive, left and right hand position optional, torque tightness adjustable

    Condenser

    Shake-out achromatic condenser, numerical aperture N.A.1.2/0.22, provides iris diaphragm with scale indication for each objective

    Five-hole disc phase contrast condenser (infinity) NA1.25

    Multi-band LED fluorescent reflection lighting

    B1 fluorescence filter group, center wavelength 470nm; G1 fluorescence filter group, center wavelength 560nm; UV2 fluorescence filter group, center wavelength 385nm; B4 tuberculosis special fluorescence color mirror group, center wavelength 455nm

    Four-channel LED fluorescent illuminator with fluorescent eye protection, external wide voltage transformer, input 100V-240V, output 6V2A

    External LED fluorescent charging power supply

    Mercury lamp fluorescent reflector illuminator

    Six-hole disc reflection fluorescent illuminator with variable field diaphragm, aperture stop, center adjustable, with disc type fluorescence filter set UV/B/G

    100W mercury lamp room, adjustable filament center, adjustable focal length, with mirror mechanism, mirror center, adjustable focal length

    Import OSRAM / domestic 100W DC mercury lamp

    Transmission lighting system

    Adaptive 100V-240V wide voltage, built-in transmissive Corolla illumination, 6V30W halogen lamp, predetermined center, continuously adjustable light intensity

    Adaptive 100V-240V wide voltage, single 3W high-brightness LED lamp, predetermined center, continuously adjustable light intensity

    Photographic camera accessories

    0.35X/0.5X/0.65X/1X CTV, C-type interface, adjustable focus

    other

    Color temperature shift / green contrast / yellow / neutral color filter (φ45), attenuation filter ND25/50
