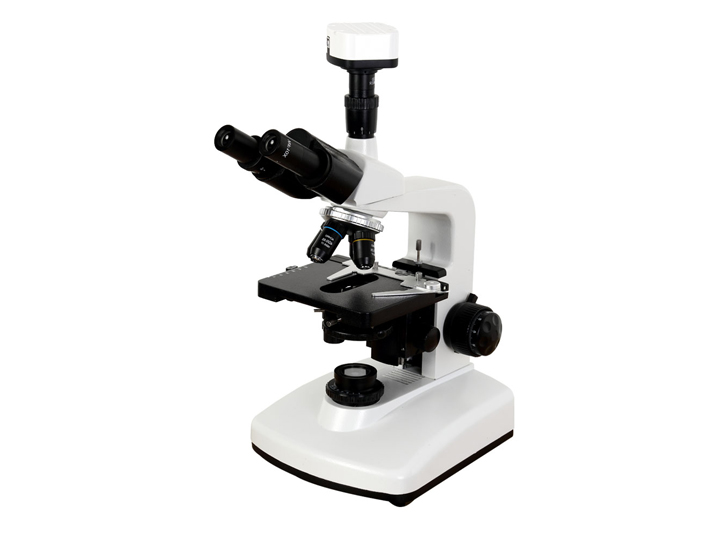

    BXP-208Microscope

    Description:一、Instrument use Digital biological microscopes are widely used in research institutes such as biology, bacteriology, histology, and medicinal chemistry. Clinical trials are available in medical schools and are available for teaching in school labor…

    一、Instrument use

    Digital biological microscopes are widely used in research institutes such as biology, bacteriology, histology, and medicinal chemistry. Clinical trials are available in medical schools and are available for teaching in school laboratories. With binocular tube and artificial illumination, the illumination can be continuously adjusted to light and dark, and the binocular tube can be rotated 360 degrees freely.

    It is suitable for use in biological, pathological, bacteriological observation, teaching and professional research, clinical trials and routine medical examinations in medical institutions, laboratories, research institutes and institutions of higher learning. The microscope can be equipped with phase contrast, dark field, polarized light and other accessories. Equipped with a variety of different products to suit the needs of different users.


    二、Technical Parameters

    1.eyepiece

    category

    gain

    Field of view diameter(mm)

    Flat field eyepiece

    10×

    18

    16×

    11

    2.Objective lens

    category

    gain

    Numerical aperture(NA)

    Working distance(mm)

    Flat field achromatic objective

    4×

    0.10

    17.5

    10×

    0.25

    7.31

    40×

    0.65

    0.63

    100X(oil)

    1.25

    0.18


    3. Optical magnification: 40X-1600X System reference magnification: 40X-2600X
    4. Coaxial coarse micro-motion focusing mechanism: focusing range 15mm micro-motion value 0.002mm
    5. Mechanical barrel length: 160mm
    6. Condenser numerical aperture (NA): 1.25
    7. Mechanical stage size: 150mm*135mm Movement range: 75*50mm vernier value: 0.1mm
    8. Color filter: blue, yellow, green
    9. Electric light source: 110V-220V/6V 20W halogen bulb, dimmable brightness
    10. Anti-mildew: unique anti-mildew system


    三、The system introduction

    Digital Biomicroscope is a high-tech product that has been successfully developed by combining precision optical microscopy technology, advanced photoelectric conversion technology and digital camera (computer) technology. Not only can you easily view real-time moving images on the display, but you can edit, save and print the pictures you need.
