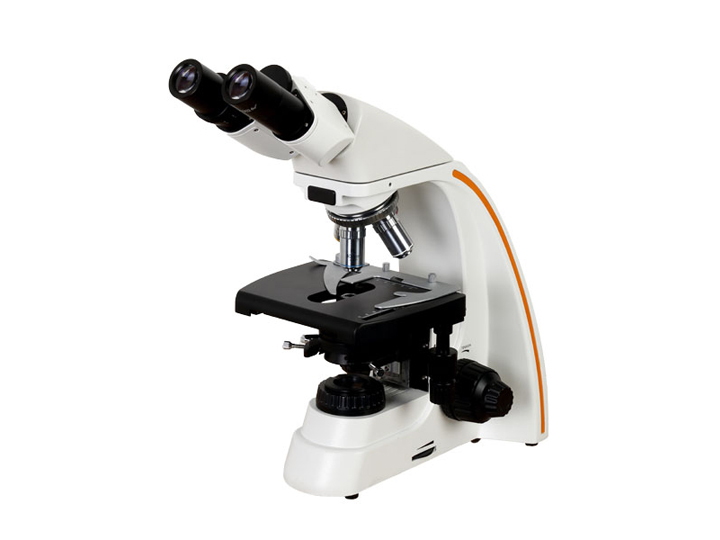

    BXP-126Microscope

    Description:一、Characteristics Infinity chromatic aberration correction optical system, high resolution image. Improved optical performance, wider field of view and better image quality. Y-shaped design of the fuselage, the overall structure is stable and relia…

    一、Characteristics

    · Infinity chromatic aberration correction optical system, high resolution image.

    · Improved optical performance, wider field of view and better image quality.
    · Y-shaped design of the fuselage, the overall structure is stable and reliable.
    · User-friendly design, low hand-operated operation and more comfortable.
    · Detachable double-layer mechanical moving table.



    二、Technical Parameters

    1. Optical system CCIS infinity chromatic aberration correction optical system, high resolution image
    2.30° tilt hinge type trinocular holder, the distance adjustment range: 50~75mm
    3. Eyepiece WF10X (field of view: ø22mm)
    4. Infinity Planar Achromatic Objective 4×∞/NA 0.1,10×∞/NA 0.25,20×∞/NA 0.50,40×(s) ∞/NA 0.65,100×(s, oil) ∞/NA .1.25
    5. Mechanical stage detachable double-layer mechanical moving table, the size of the stage: 185mm × 145mm,
    6. Moving range: 75 (X) mm × 50 (Y) mm, accuracy: 0.1mm
    7. Converter inward five-hole converter
    8. Coaxial mechanism coarse coarse and fine focusing mechanism, focusing range: 25mm, micro-motion value: 0.002mm
    9. Condenser shake-out condenser: N.A.1.2/0.22
    10. Light source transmissive Kola illumination, 6V 30W halogen lamp, adjustable light source brightness, wide voltage 100V ~ 240V, blue color filter
