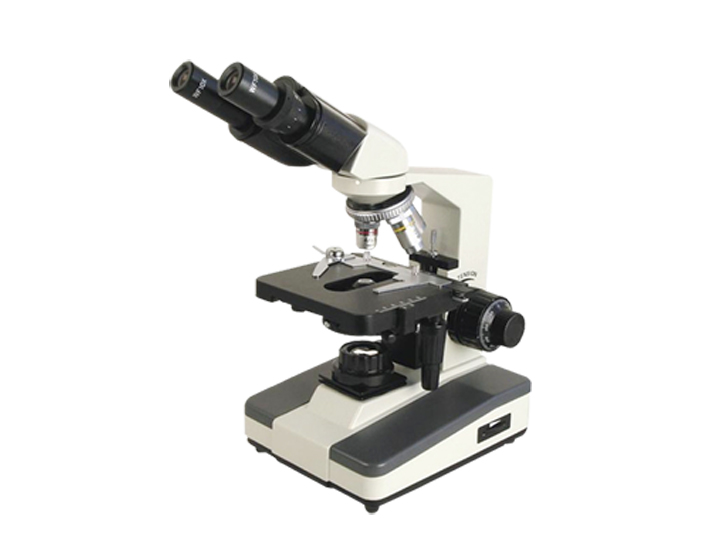

BXP-104Microscope
一、Instrument use
It is widely used in research institutes such as biology, bacteriology, histology, and medicinal chemistry. It can be used in clinical trials in medical schools and can be used in school laboratories. With binocular tube and artificial illumination, the illumination can continuously adjust the brightness, and the binocular tube can rotate 360 degrees freely.
二、Technical Parameters
1.eyepiece
|
category |
gain |
Field of view diameter（mm） |
|
Flat field eyepiece |
10× |
φ18 |
|
16× |
φ11 |
2.Objective lens
|
category |
gain |
Numerical aperture（NA） |
Working distance（mm） |
|
Flat field achromatic objective |
4× |
0.10 |
37.5 |
|
10× |
0.25 |
7.31 |
|
|
40× |
0.65 |
0.63 |
|
|
100×(oil) |
1.25 |
0.18 |
4. Binocular distance adjustment range: 55-75mm
5. Condenser: Abbe condenser with variable diaphragm
6. Color filter: blue, yellow, green, matte
7. Mechanical barrel length: 160mm
8. Stage size: 135×130mm Movement range: 75×35mm, cursor: 0.1mm
9. Electric light source: 6V/20W brightness is continuously adjustable
三、Instrument set
1. Microscope main body 1 set
2. Achromatic objective lens 4×, 10×, 40×, 100× oil 1 each
3. Binocular tube 1
4.10×, 12.5× flat field eyepieces 1 pair
5. Color filter (blue, yellow, green, matte) 1 piece each
6. Oil immersion (synthetic oil) for objective lens
7. Spare halogen lamp 1
