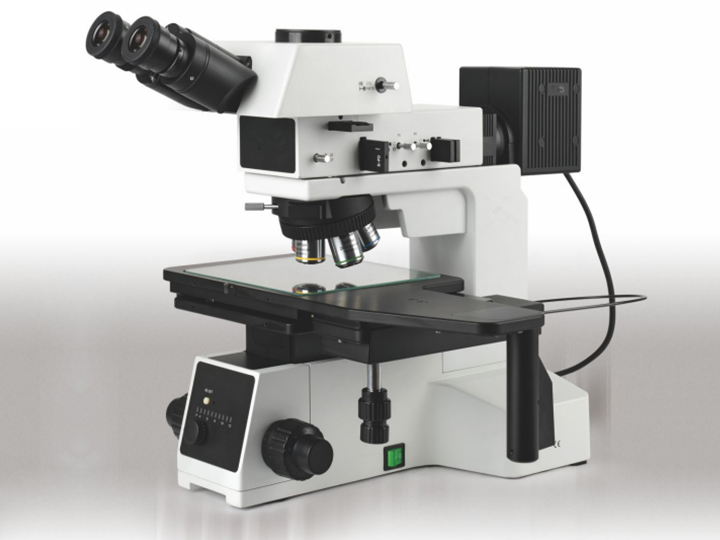

CDM-809Upright metallographic microscope
The CDM-809 is ideally designed for ergonomics, making operation easier and more comfortable. It is suitable for microscopic observation of metallographic structure and surface morphology. It is an ideal instrument for metallurgy, mineralogy and precision engineering research. Also suitable for the electronics, metallurgy, chemical and instrumentation industries to observe transparent, translucent, opaque materials such as metals, ceramics, manifolds, printed circuit boards, liquid crystal panels, films, fibers, coatings and other non-metallic materials. It is suitable for observation and analysis by medicine, agriculture, forestry, public security, schools and scientific research departments.
The CDM-809 series of metallographic microscopes have high-performance optical systems, simple operation, innovative technology, perfect functions and good stability to meet your application needs now and in the future. This product has two camera interfaces that can connect two computers (digital cameras) at the same time to share images. Flexible upgrades, such as DIC observations.
三、 Advantage
This machine has bright field, differential interference DIC, polarized light function, customers can upgrade and add DIC differential interference function if necessary, the optical system is excellent, the working distance of the objective lens is large, easy to operate, the objective lens adopts semi-apochromatic infinity objective lens, the image is more Clear, a fine machine in a metallographic microscope.
Observation system: hinged binocular viewing tube, 30° tilt, no need to look down or look up for a long time during operation, so that the operator's shoulder is effectively released. The field wide-angle eyepiece has a field of view of up to 22 mm in diameter, which makes the eyepiece field wider and more comfortable, with a rubber eye patch.
Mechanical stage: mechanical moving platform, built-in rotatable circular stage plate, shaped viewing window set in the board is suitable for microscopic observation of different specifications of samples, can be rotated circularly for polarized observation The platen is used to meet the requirements of polarized light inspection.
Lighting system: With the Corolla lighting method, the aperture diaphragm and the market light bar can be adjusted by the dial to adjust the aperture comfort. The optional polarizer can adjust the polarization angle 360° to observe microscopic images in different polarization states. Optional DIC differential interference chip to quickly upgrade product system functions.
Photographic camera observation: The rear-mounted camera interface design makes the camera accessories no longer interfere with visual observation. With 100% pass light, it is suitable for low-light photomicrography camera. It is equipped with a 12-megapixel 1/1.7” large-format camera. The image is clearer and more vivid.
四、Technical Parameters
|
product name And model
|
Metallographic microscope |
|
|
Component configuration
|
Specification Description |
Quantity |
|
|
High eye point large field of view flat field eyepiece |
2 |
|
|
Infinity hinged tee observation tube, 30° tilt, pitch adjustment range：50mm～75mm |
set |
|
|
Infinity long working distance flat field achromatic metallographic objective5X-DIC，LMPL5X/0.15 WD10.8mm |
1 |
|
|
Infinity long working distance flat field achromatic metallographic objective10X-DIC，LMPL10X/0.3 WD10mm |
1 |
|
|
Infinity long working distance flat field achromatic metallographic objective20X-DIC，LMPL20X/0.45WD4mm |
1 |
|
|
Infinity long working distance flat field semi-reduction metallographic objective50XLMPLFL50X/0.55 WD7.8mm |
1 |
|
|
Infinity long working distance flat field semi-reduction metallographic objective100XLMPLFL100X/0.80 WD2.1mm |
Optional |
|
|
Internal positioning 5-hole converter (with DIC slot) |
1 |
|
|
DIC differential interference component (optional) |
Without |
|
|
Translucent, reflective frame, front and low hand position coarse and micro coaxial focusing mechanism. The coarse adjustment stroke is 30mm and the fine adjustment precision is 0.001mm. Adjustable tensioning device with anti-slip and random upper limit device. Built-in 5W warm color LED transmission light illumination system, the upper and lower light can be independently controlled. |
1 |
|
|
Anti-drop illuminator, Kola illumination system with field diaphragm and aperture stop, center adjustable; with oblique illumination |
1 |
|
|
100-240V wide voltage, single high power 5W LED, warm color |
1 |
|
|
4-inch platform adapter interface (for transflection, reflection) |
1 |
|
|
4-inch double-layer mechanical moving platform, coaxial adjustment of X and Y directions in low hand position; platform area 230mmX215mm, moving range: 105mmX105mm; glass carrier board. (right hand position, thorough, anti-use) |
1 |
|
|
φ30 partial mirror inserts (for reflection) |
1 |
|
|
360 degree rotary analyzer insert |
1 |
|
|
1/2CTV(0.5X),CInterface, adjustable focus |
1 |
|
Magnification |
50X、100X、200X、500X、Adjustable (standard configuration 10X eyepiece) |
|
|
light source |
Transflective lighting system (LED light), adjustable brightness |
|
