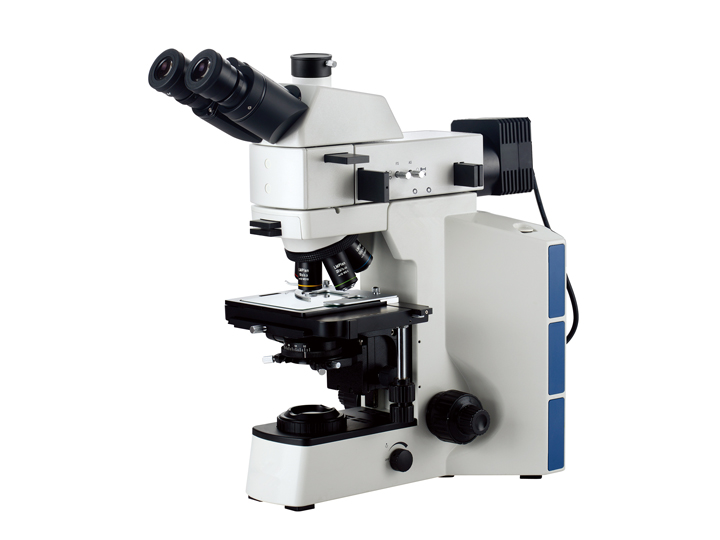

CDM-806Upright metallographic microscope
一、Features:

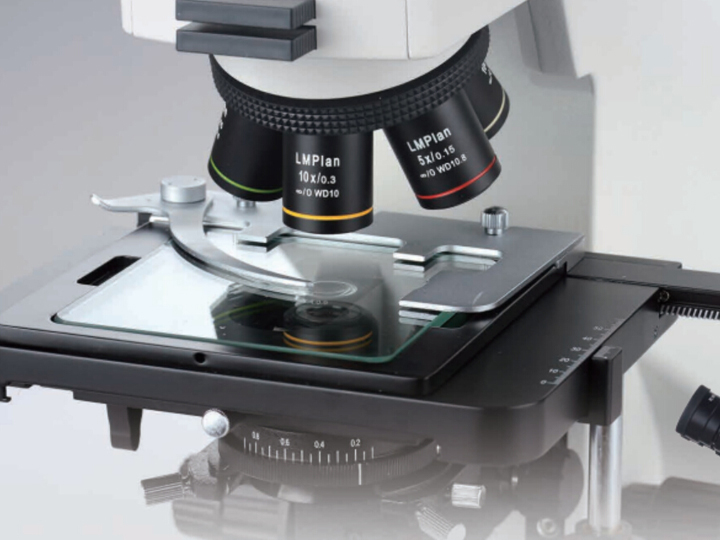

Integrating the advantages of metallographic microscope technology, providing customers with cost-effective metallographic analysis and industrial inspection solutions with excellent imaging performance and comfortable operating experience. LMPlan series long working distance metallographic objective lens enhances the level of chromatic aberration correction and adjusts the film system design to further improve image resolution and color reproduction.
Observation tube
The observation tube with the comfortable angle (30°) of the newborn bed can alleviate the tension and fatigue of the user under long working conditions and ensure the observation state. Observe the scale on the tube to allow the user to adjust the distance range.
Epi-illuminator
LED cola illumination system with field diaphragm, aperture stop and oblique illumination; preset polarizer, analyzer and filter slot.
A single 5W LED warm white lighting (3000-3300K) can reduce the visual fatigue of the observer compared with similar LED lighting.
The field diaphragm and aperture diaphragm adopt the lever device, the center is adjustable, and the size of the illumination range can be flexibly adjusted to effectively avoid the influence of stray light on the image.
The polarizer and the analyzer can realize simple polarized light observation. You can also choose different color filters to get the ideal observation effect according to your needs.
Random limit device
It can effectively prevent the sample from touching the objective lens and avoid damage. The use of an excellent concentrating system, the numerical aperture is larger, the brightness is higher, and the transmission rate of transmitted light is greatly improved.
二、Product configuration：
|
Product name and model |
CDM-806Three-eye transflective microscope |
|
|
Component configuration and specifications |
Specification Description |
Quantity |
|
High eye point large field of view flat field eyepiece22mm |
1pair |
|
|
Infinity hinged three-way observation tube, 30° tilt, 360° rotation; pupil of the eye distance adjustment range: 54mm～75mm; diopter adjustment ±5°; two-speed split ratio R:T=100:0 or 50:50 |
1set |
|
|
Infinity long working distance flat field achromatic metallographic objective5XLMPL5X/0.15 WD10.8mm |
one of a pair |
|
|
Infinity long working distance flat field achromatic metallographic objective10XLMPL10X/0.3 WD10mm |
one of a pair |
|
|
Infinity long working distance flat field achromatic metallographic objective20XLMPL20X/0.45 WD4mm |
one of a pair |
|
|
Infinity long working distance flat field semi-reduction metallographic objective50XLMPLFL50X/0.55 WD7.8mm |
one of a pair |
|
|
Infinity long working distance flat field semi-reduction metallographic objective LMPLFL100X/0.80 WD2.1mm(Can be equipped with) |
Without |
|
|
Internal positioning 5-hole converter |
one of a pair |
|
|
Transflective dual-purpose rack, low-handed coarse and micro-coaxial focusing mechanism. The coarse adjustment stroke is 28mm, with the platform position up and down adjustment mechanism. The sample height is 30mm and the fine adjustment accuracy is 0.002mm. Adjustable tensioning device with anti-slip and random upper limit device. Built-in 100-240VAC 50/60Hz wide voltage system, the upper and lower light sources are independently controllable. |
1 |
|
|
Anti-drop illuminator, Kola illumination system with field diaphragm and aperture stop, center adjustable. With oblique lighting. |
1 |
|
|
100-240V wide voltage, single high power 5W LED, warm color |
1 |
|
|
Single high power 5W LED lamp room (for transmission) |
1 |
|
|
Double-layer mechanical moving platform, coaxial adjustment of X and Y directions in low hand position; platform area 175mm×145mm, moving range: 76mm×42mm. |
1 |
|
|
Transflective glass stage plate |
1 |
|
|
Shake-out achromatic condenser（N.A 0.9） |
1 |
|
|
|
φ30Polarizer insert（Reflection） |
1 |
|
|
360 degree rotary analyzer insert |
1 |
|
1/2CTV(0.5X),C interface, adjustable focus |
1 |
|
|
Magnification |
50X、100X、200X、500X、Adjustable（Standard configuration 10X eyepiece） |
|
|
light source |
Reflective LED illumination, transmissive LED illumination, adjustable brightness. |
|
|
Note： |
CDM-806：For computer type, size：50*25*52CM Voltage：220V weight：16KG |
|
