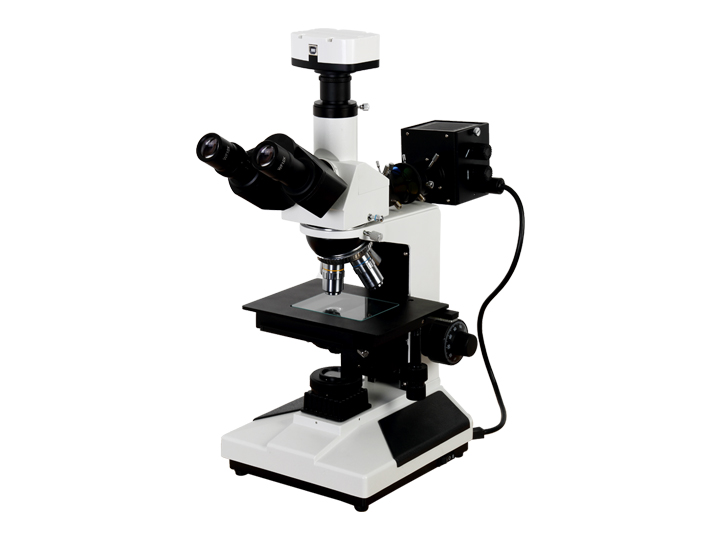

CDM-560Upright metallographic microscope
CDM-560seriesUpright metallographic microscope (transflective) suitable for the electronics, metallurgy, chemical and instrumentation industries for the observation of transparent, translucent or opaque materials such as cermets, manifolds, printed circuit boards, liquid crystal panels, films, fibers, plating Coatings and other non-metallic materials are also suitable for observation and analysis by medicine, agriculture, forestry, public security, schools, and scientific research departments.
二、introduction
This system combines the traditional optical microscope with a computer (digital camera) through photoelectric conversion organic, not only can be observed on the eyepiece, but also can observe real-time dynamic images on the computer (digital camera) display screen. A metallographic microscope that edits, saves, and prints the images you need.
三、Technical Parameters

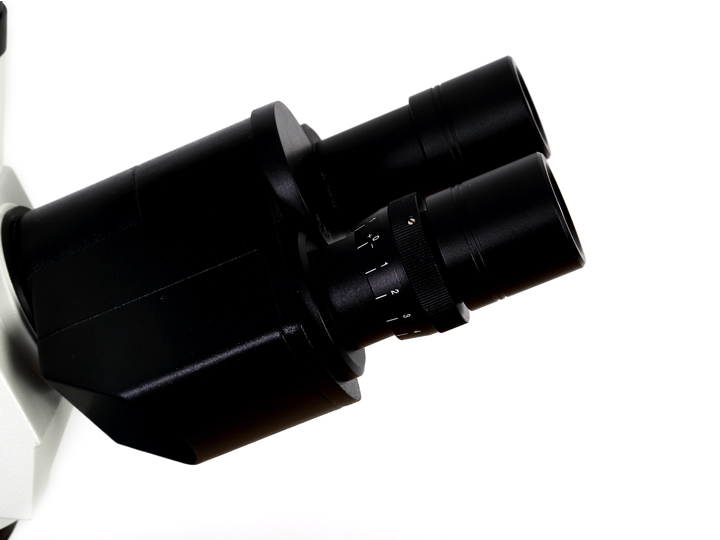

1.Eyepiece
|
Types of |
Gain |
Field of view(mm) |
|
Large field eyepiece |
10X |
Φ16 |

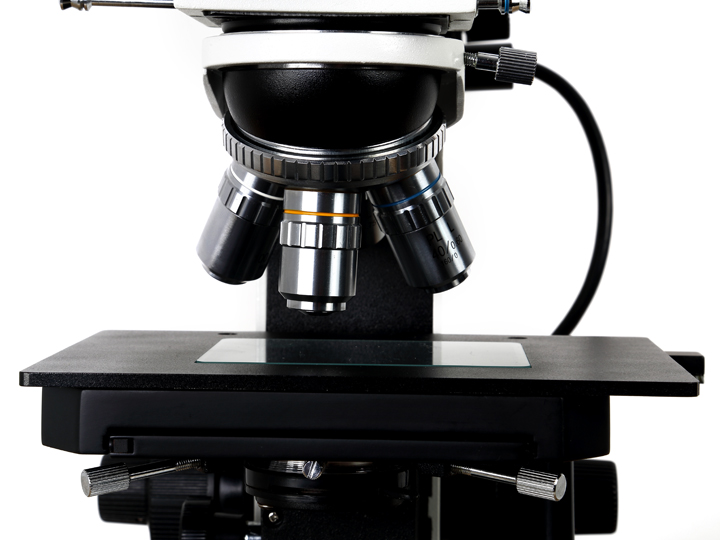

2. Objective mirror
|
Types of |
Gain |
Numerical aperture(NA) |
Working distance(mm) |
|
Flat field achromatic objective（Coverless slide） |
5X |
0.12 |
18.3 |
|
10X |
0.25 |
8.9 |
|
|
40X |
0.60 |
3.7 |
|
|
60X |
0.85 |
0.26 |
3.Optical magnification：50X -- 600X System reference magnification：50X-2600X
4.Stage：size 185mm*142mm Moving range 75mm*50mm
5.Focusing system：Coaxial coarse fretting with limit and adjustment elastic Micro-motion value 0.002mm
6.Color filter set：Rotary, yellow, blue, green, frosted glass

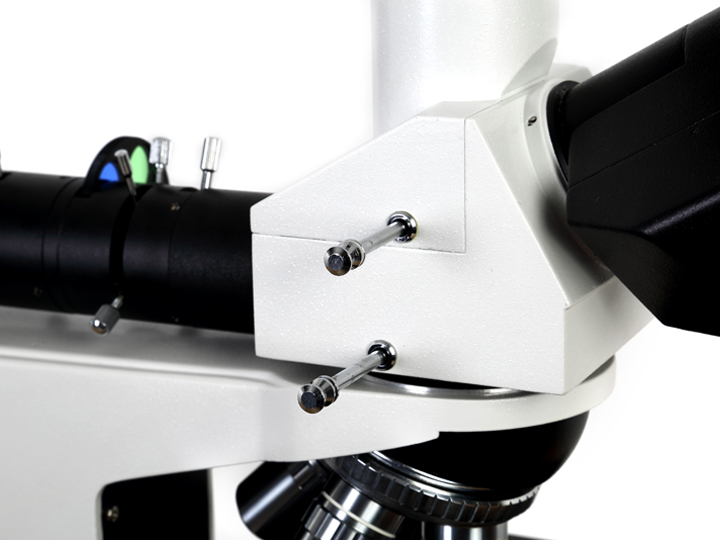

7.Polarizing device: insertable polarizing plate and trinocular built-in polarizing plate

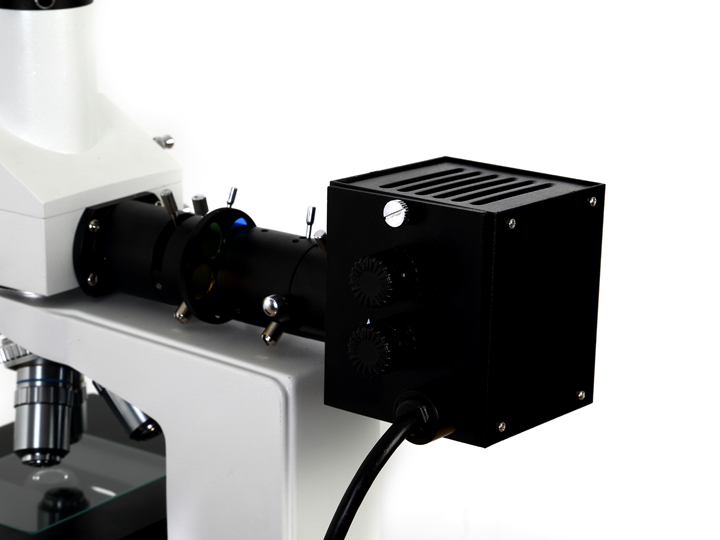

8.Lighting system: 6V/20W halogen lamp, adjustable brightness: 220V（50Hz）
