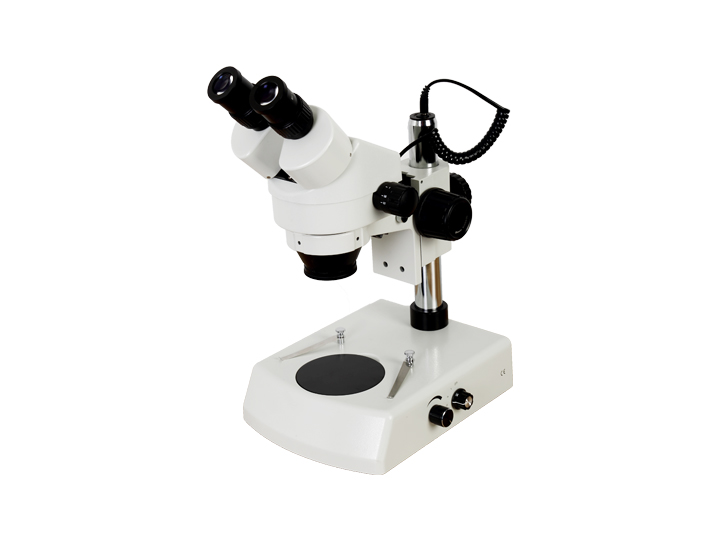

    ZOOM-550

    Description:一、Product UsageThe ZOOM-550 series of stereo microscopes are used in a wide range of applications. The stereo microscope can produce an erect three-dimensional image when viewed from a stereo microscope. The stereoscopic effect is strong, the image …

    一、Product Usage
    The ZOOM-550 series of stereo microscopes are used in a wide range of applications. The stereo microscope can produce an erect three-dimensional image when viewed from a stereo microscope. The stereoscopic effect is strong, the image is clear and wide, and it has a long working distance and can be based on the characteristics of the observation object. With different reflection and transmitted light illumination, stereo microscopes are a wide range of conventional microscopes. The same object can achieve continuous magnification viewing, stereo microscope performance is reliable, easy to operate, easy to use, and beautiful appearance, not only for teaching demonstration, biological anatomy, for observation and analysis, due to the high resolution of stereo microscope The clarity of the large field of view, so it can also be used for assembly and inspection of parts in the electronics industry and precision machinery industry, and seed inspection in agriculture.


    二、introduction
    The stereo microscope system combines a traditional optical microscope with a computer (digital camera) through a photoelectric converter, not only through the eyepiece for microscopic observation, but also viewing real-time moving images on a computer (digital camera) display screen. And can edit, save and print the required pictures.

    Provides high quality optics and a durable and reliable operating mechanism. Complete accessories, diverse combination configuration. Meet the high precision requirements of modern biology, medicine, scientific research, modern electronics industry online testing and other technology industries.

    三、Performance characteristics
    1. High-quality optical components coated with high-quality optical components coated with special layers
    2. Forming a flat image surface and a good contrast in a large field of view, especially in the peripheral field of view, the image quality is brighter and clearer
    3. Adopt continuous zoom objective lens 0.7X~4.5X (6.3:1), standard magnification 7X~45X. (Optional auxiliary objective lens, magnification 14X~180X)
    4. The effective standard working distance is up to 100mm, and the auxiliary objective lens is selected. The working distance will be extended to 26 mm~287mm, creating enough space for use.
    5. Observing the head 45° tilt, the double cylinder can be adjusted to ensure clear and satisfactory images for users with different visions.
    6. Ergonomic structural design, high eye point, no fatigue for long time use
    7. The horizontal (axial) bilateral setting of the zoom hand wheel makes the operation convenient and comfortable, and the zoom repeating precision is high.
    8. With a variety of accessories to expand the application area.

    四、Technical specifications
    1. Eyepiece: High eye point large field of view eyepiece WF10X/20mm (can be installed micrometer)
    2. Observation head: Binocular observation head. 45° tilt, 360° rotation; can be equipped with camera interface

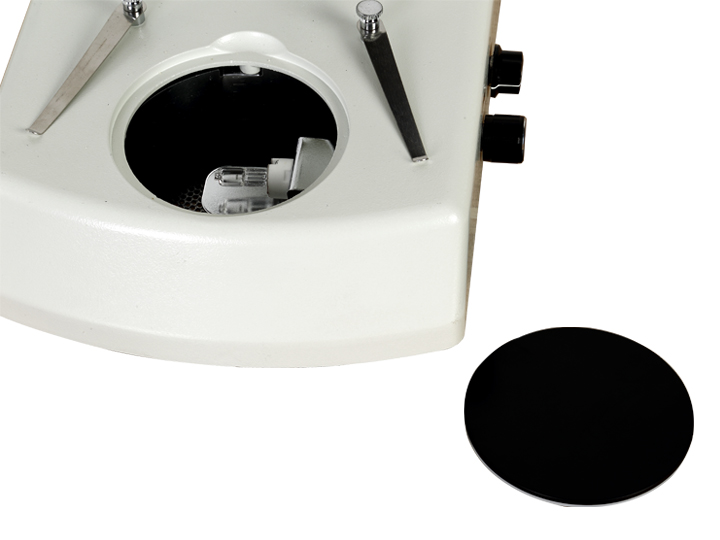

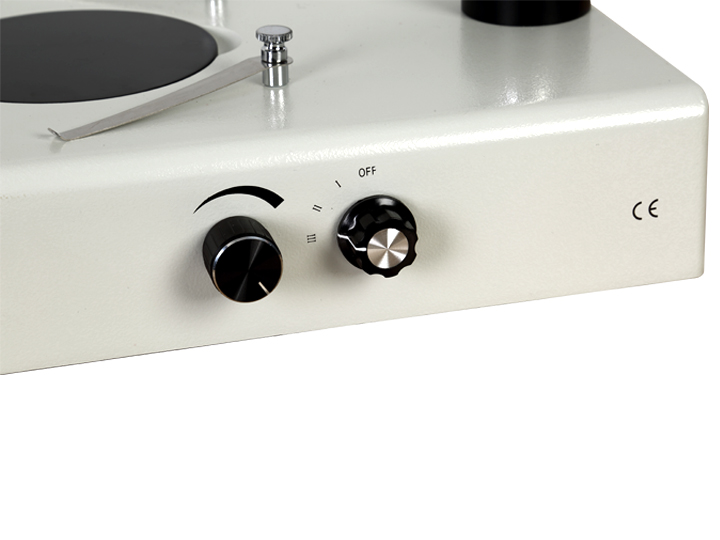

    3. Base: Standard: column-type transmission base, upper and lower light source is halogen lamp 12V15W (adjustable brightness), there are other various bases available
    4. Focusing bracket: Focusing frame, adjustable hand wheel is elastic and adjustable, lifting range is 50mm.


    五、Option
    1. Eyepiece: High eye point large field of view eyepiece WF15X/15mm High eye point large field of view eyepiece WF20X/10mm
    2. Auxiliary objective lens: 0.5X/165mm. 1.5X/45mm. 2X/30mm.
    3. Other external light sources: ring light / LED light / cold light source lighting
